With new cutting-edge technology -- infrared sensor and motorized base, the safe box will fully conceal into your closet. A small space for installation, meeting the demand for a clutter-free design.

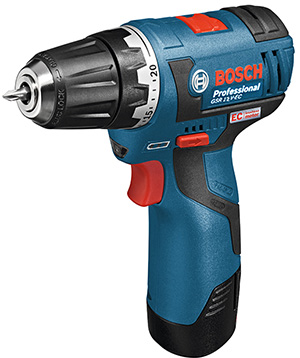

Tool
1. Install the motorized Base

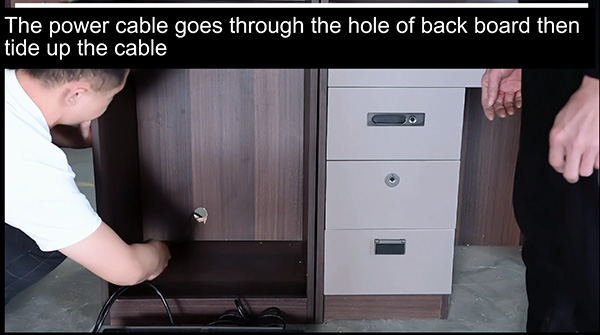

1-1. Drill a hole no less than Φ38mm on the back board, then the power cable goes through the hole of back board then tide up the cable

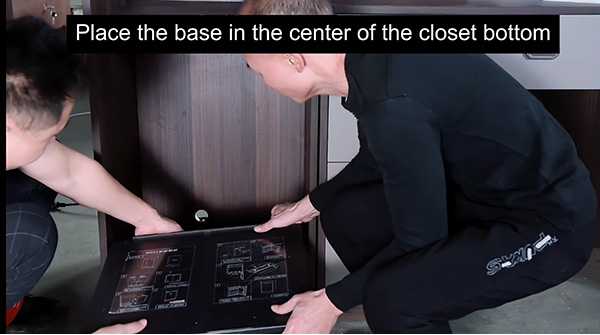

1-2. Place the base in the center of the closet bottom, Tide up the power cable and connecting cable. Ready for use

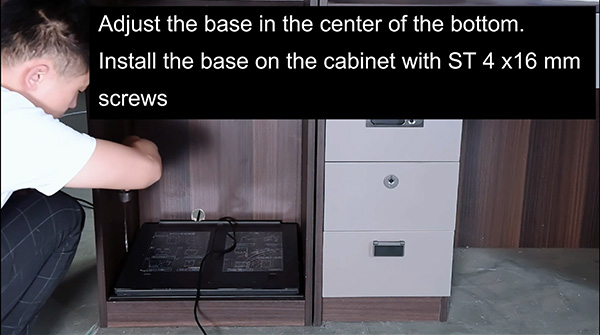

1-3. Adjust the base in the center of the bottom. Install the base on the cabinet with ST4x16 mm screws
2. Install the Safe Box
2-1. Power on

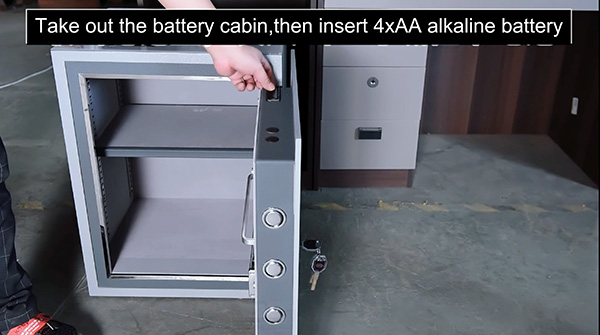

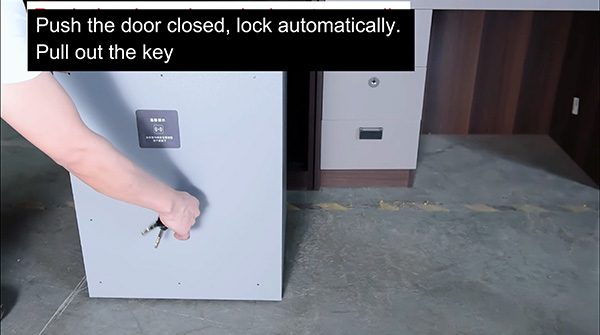

Open the safe with override key. Take out the battery cabin,then insert 4xAA alkaline battery. Push the door closed, lock automatically. Pull out the key
2-2. Connect the cable

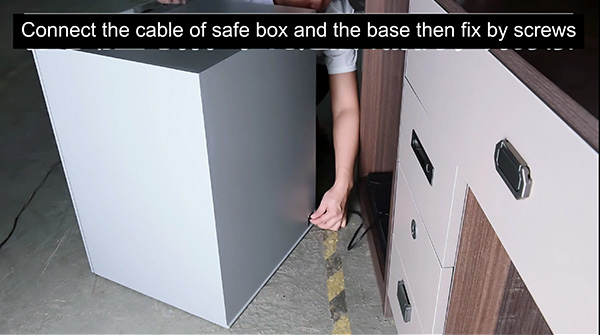

Connect the cable of the safe box and the base then fix by screws. Fix the connecting wire with the cable clip, then install the clip on the safe box with screws
2-3. Install Safe Box

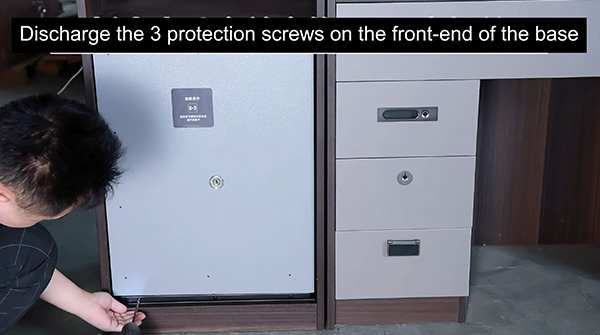

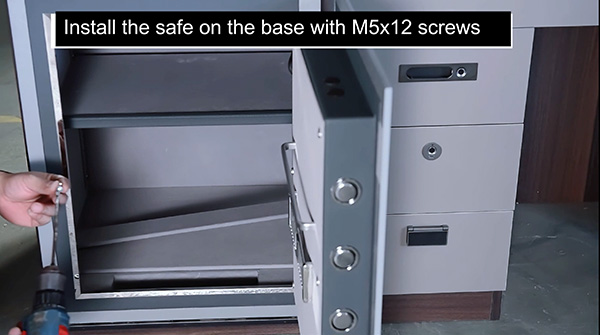

Place the safe box on the base, discharge the 3 protection screws on the front-end of the base then power on. Take out the bottom board of the safe and install the safe on the base with M5x12 screws; Install the bottom board back
2-4. Testing

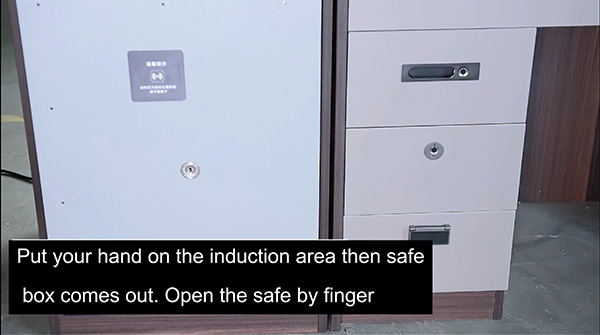

Put your hand on the induction area then safe box comes out. Open the safe by finger. Take out the bottom board of the safe and install the safe on the base with M5x12 screws; Install the bottom board back
3. Install the front Wood door

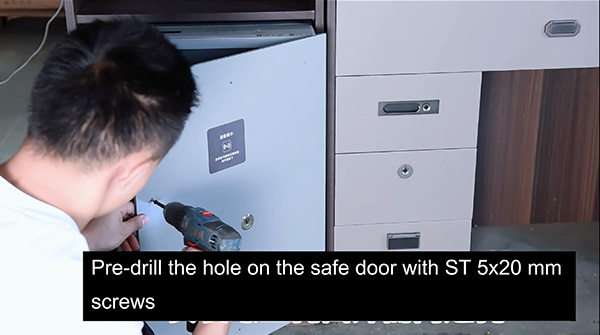

3-1. Pre-drill the hole on the safe door with ST 5x20 mm screws
3-2. Close the door. Place your hand on the induction area then the safe box restracts back

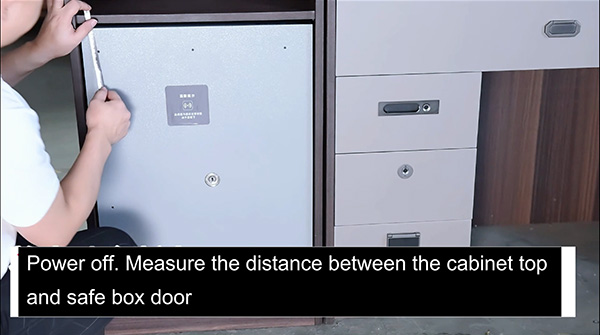

3-3. Power off. Measure the distance between the cabinet top and safe box door, then measure and mark on the wood door of the safe box

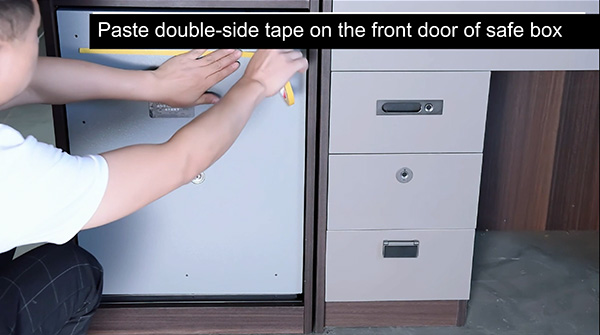

3-4. Paste double-side tape on the front door of safe box, the wood door align with the steel safe door, cling it tightly

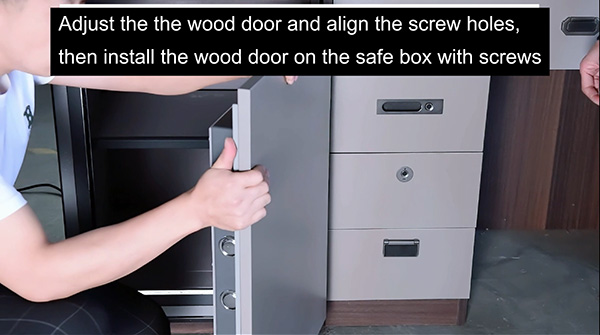

3-5. Adjust the the wood door and align the screw holes, then install the wood door on the safe box with screws

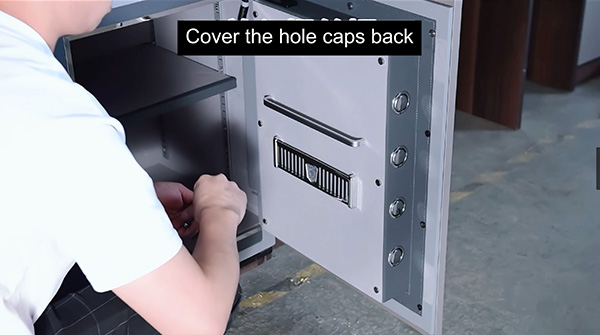

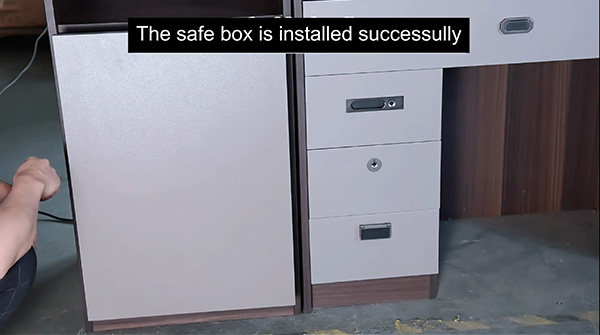

3-6. Cover the hole caps back, and the safe box is installed successully
