It’s a luxury storage tips: transform your drawer into a vault which is used for your cherished jewelry and important documents. No need the drill a hole on the wall and it will be fully concealed into the drawer after installation.
Note: Leave enough space on the right side or at the bottom of the drawer for emergency open with override key
Tool
1. Power On

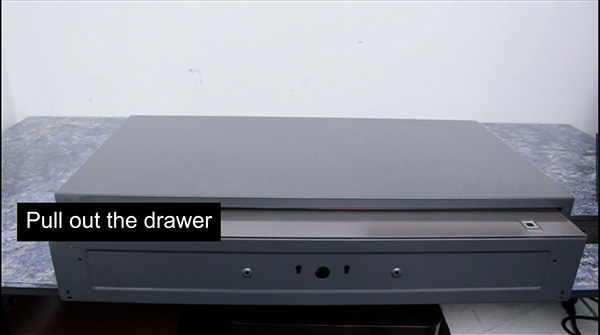

1-1. Pull out the drawer

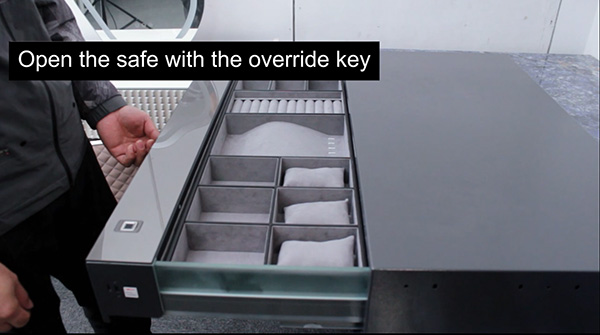

1-2. Open the drawer with the override on the bottom of the drawer
1-3. Pull out the Jewelry Organizer from the drawer

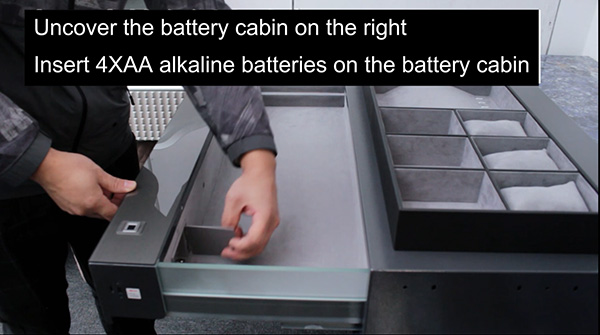

1-4. Lock System Power On: Uncover the battery cabin on the right Insert 4XAA alkaline batteries, Back Light on then turns off after a long beep. Power on successfully

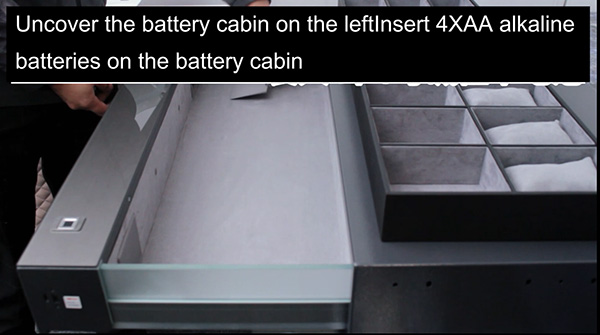

1-5. Side Lights Power On: Uncover the battery cabin on the left. Insert 4XAA alkaline batteries on the battery cabin
2. Install the steel drawer into the cabinet
2-1. Detach the inner drawer
Press the drawer body with your left hand and hold the bottom with your right hand then pull up
2-2. Install the outer safe box

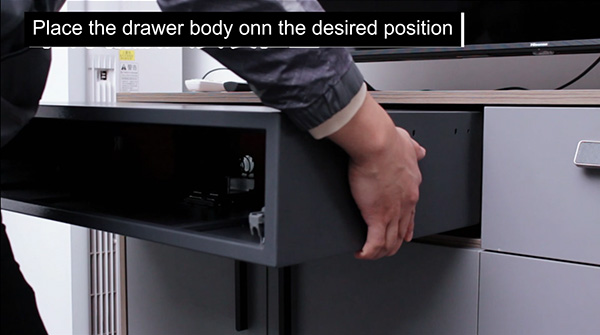

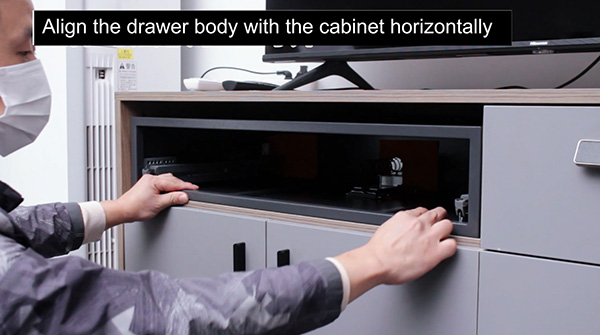

Place the drawer body on the desired position, then align the drawer body with the cabinet horizontally, finally install the drawer body on the cabinet with screws on both sides
2-3. Install back the inner drawer
Fully extend the rails and install back the inner drawer, align the both sides of inner drawer with the rails and install back the inner drawer into the outer safe

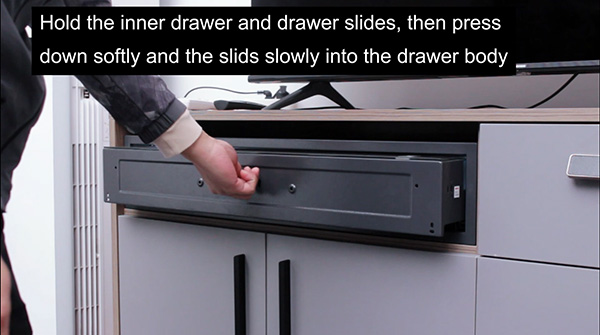

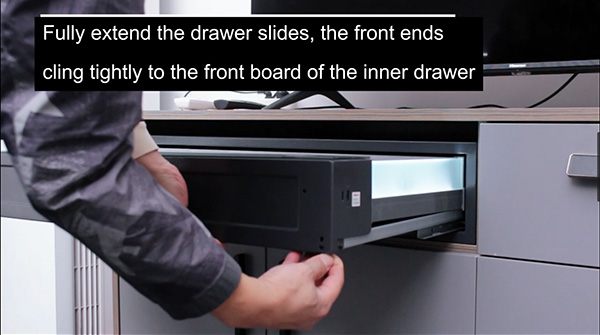

Note: Fully extend the drawer slides, the front ends, cling tightly to the front board of the inner drawer. Hold the inner drawer and drawer slide, then press down softly and the slides slowly into the drawer body
3. Install the Drawer Door (A front wood drawer door with a handle)

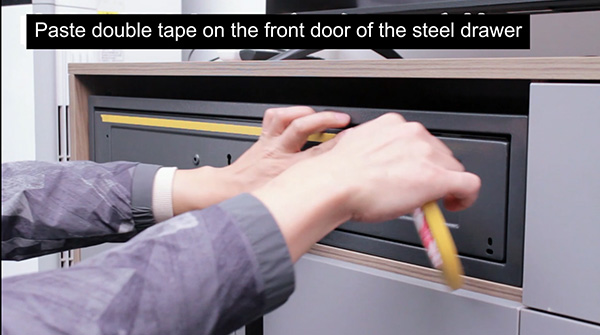

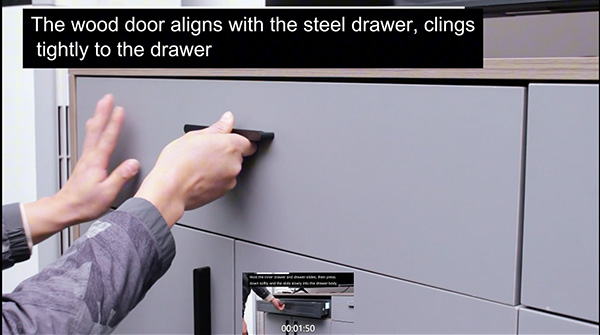

3-1. Paste the double-side tape on the steel drawer, align the wood drawer door with the steel drawer, then cling tightly to the drawer

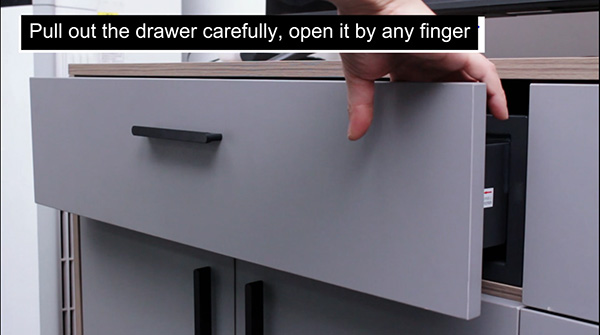

3-2. Pull out the drawer carefully, open it by any finger
3-3. Install the wood door on the steel drawer with screws on both sides, adjust the door and lessen the gap then fasten the screws.

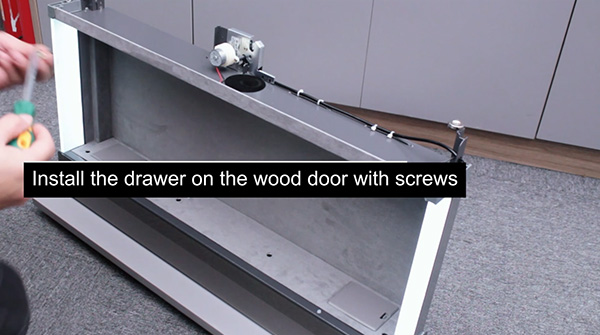

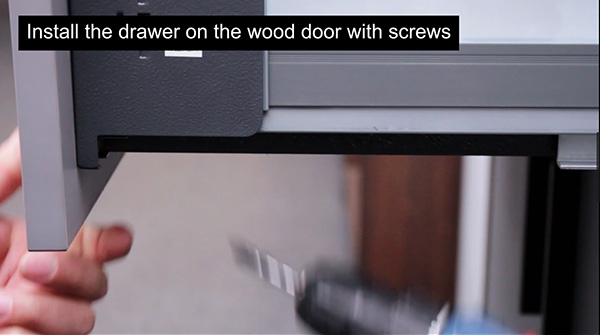

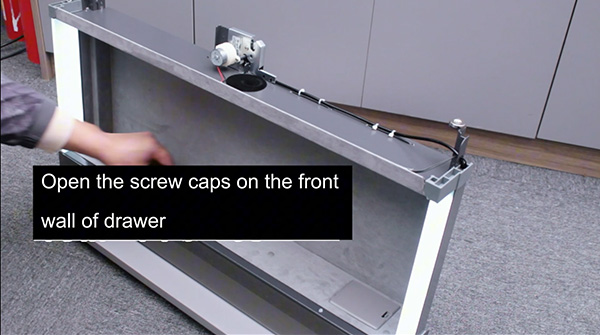

3-4. Pull out the drawer again, then place the drawer vertically; Open the screw caps on the front wall of drawer and Install the drawer on the wood door with screws and finally put on the caps.

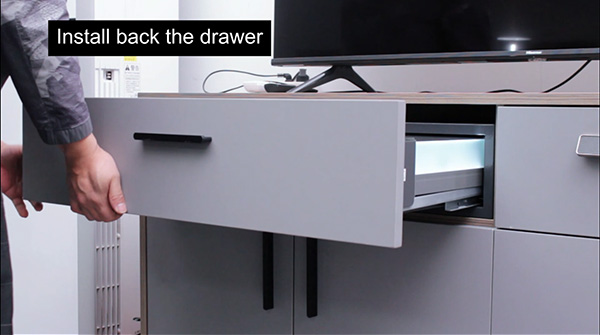

3-5. Fully extend the drawer slides, then install back the drawer
4. Install the Drawer on the Cabinet
4-1. Pull out the drawer again, then place the drawer vertically; Open the screw caps on the front wall of drawer and Install the drawer on the wood door with screws and finally put on the caps.
4-2. Open the screw caps on the front wall of drawer and Install the drawer on the wood door with screws and finally put on the caps.
4-3. Fully extend the drawer slides, then install back the drawer

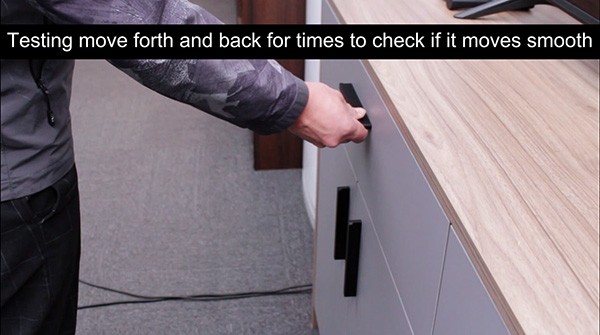

4-4. Testing move forth and back for times to check if it moves smooth
4-5. Install the jewelry tray
4-6. The steel drawer is installed successfully

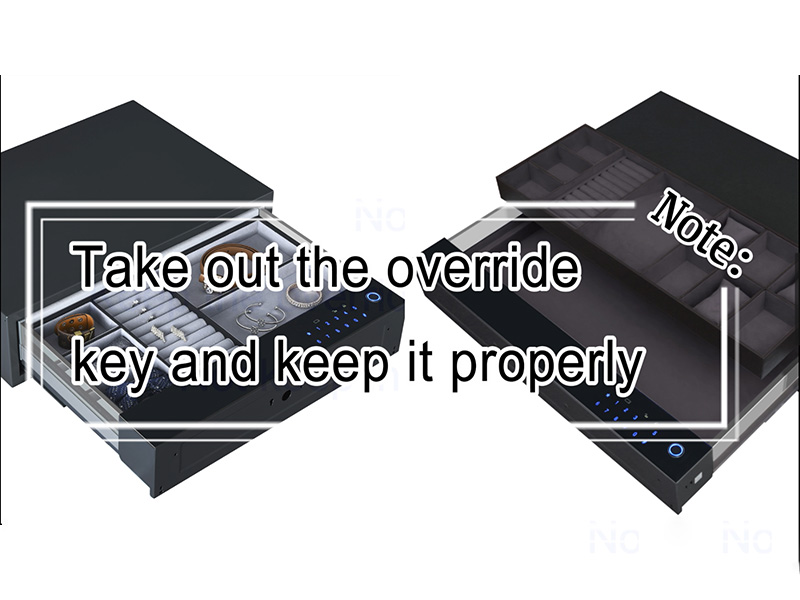

Note: Take out the override key and keep it properly
