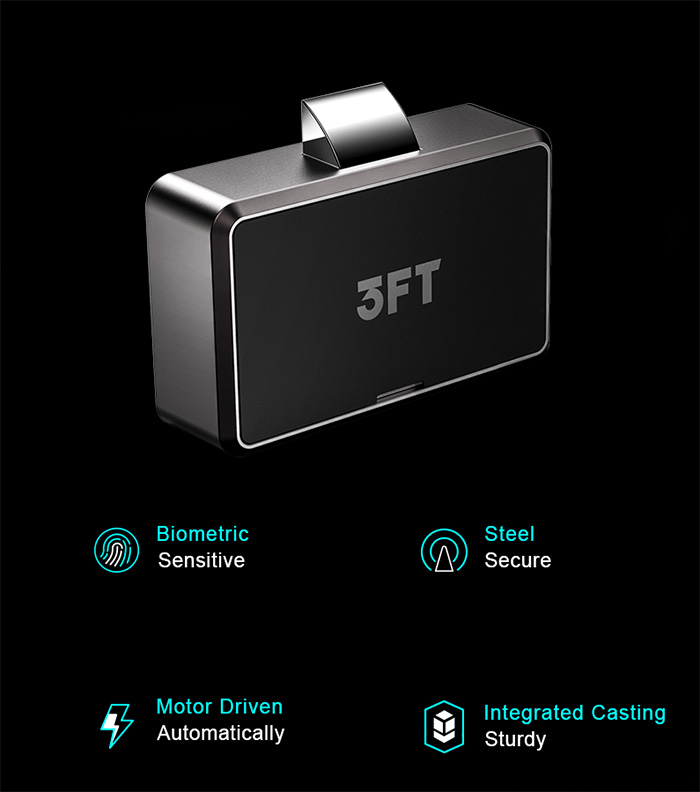

Smart Wardrobe Lock F0 Series

◉Keyless, Smart and Safe

◉Biometric Fingerprint Access (Up to 20 Fingerprints)

◉Easy installation without key management hassles

◉Compact and User-Friendly Design

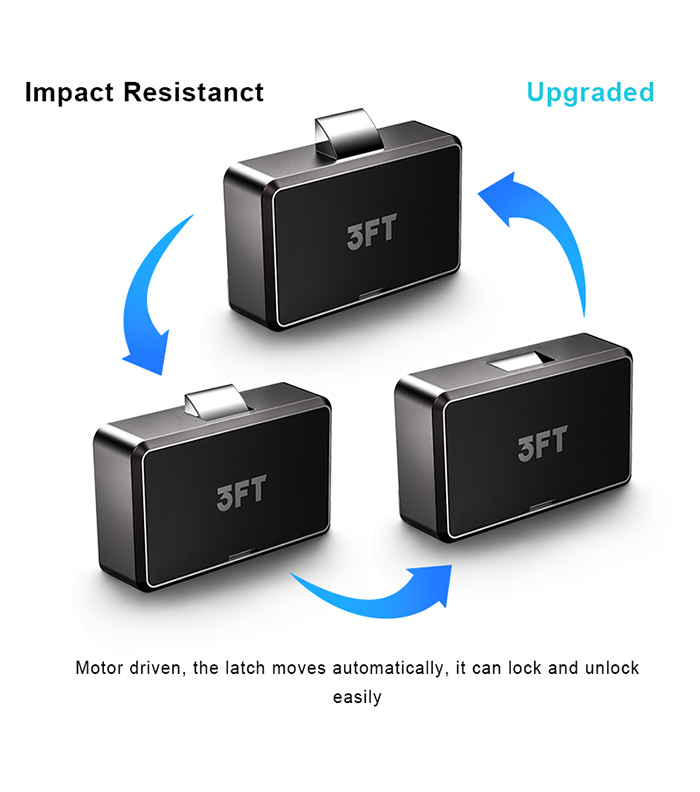

◉Motorized steel lock body

◉Versatile Application in Drawers, Cabinets, Wardrobes and More

Features

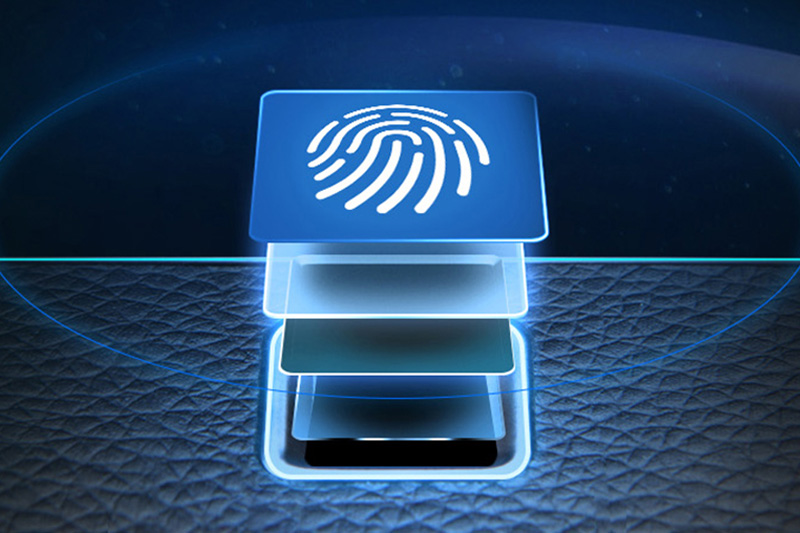

Semiconductor Scanner

Intelligent

Responsive

Secure

✓20 fingerprints

✓Recognition ≤0.5s

✓FRR ≤ 0.1%

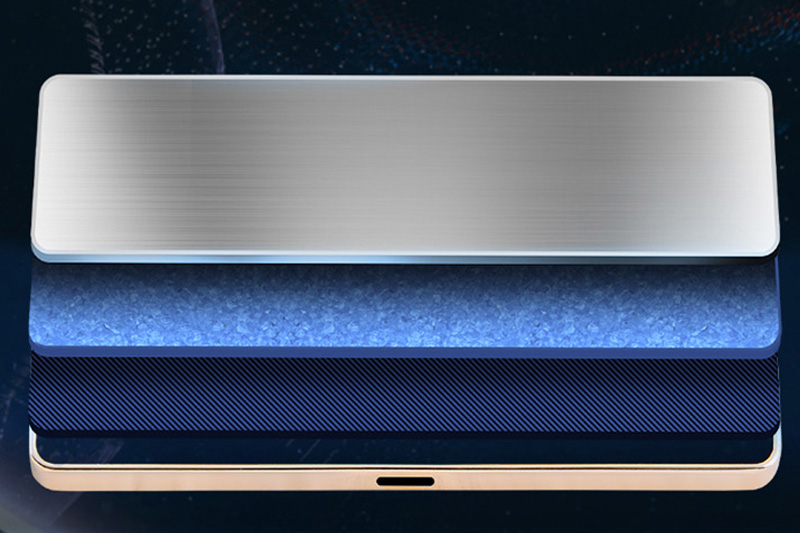

Finest Material

High Quality

Impact resistant

Reinforced

✓Microfiber leather

✓HP steel

✓Zinc-alloy

Lithium Battery

Compact

Energy-saving

Long lifetime

✓Built-in

✓250mAh, 0.925Wh

✓rechargeable

Classic Handle Design

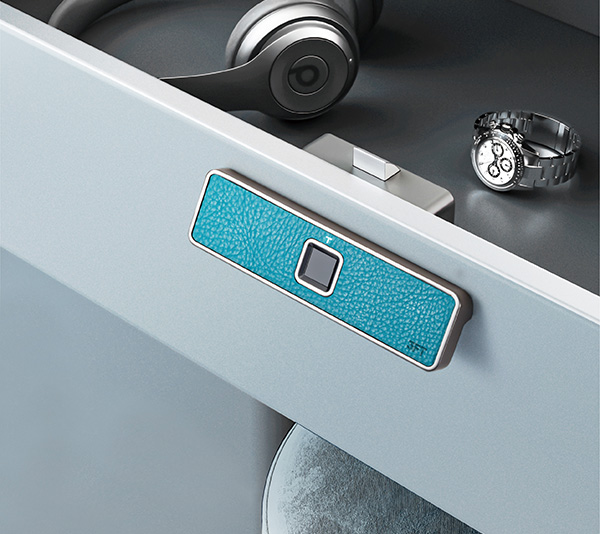

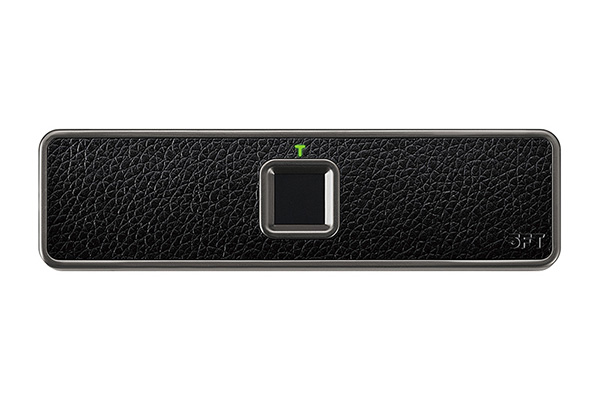

S032

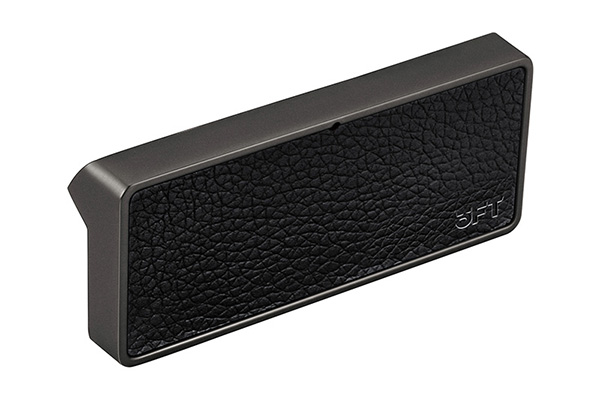

S033

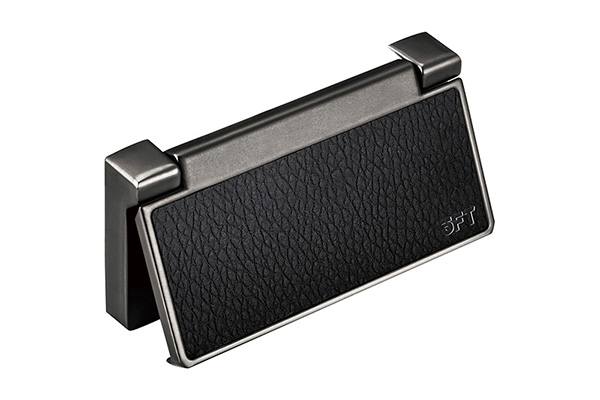

S035

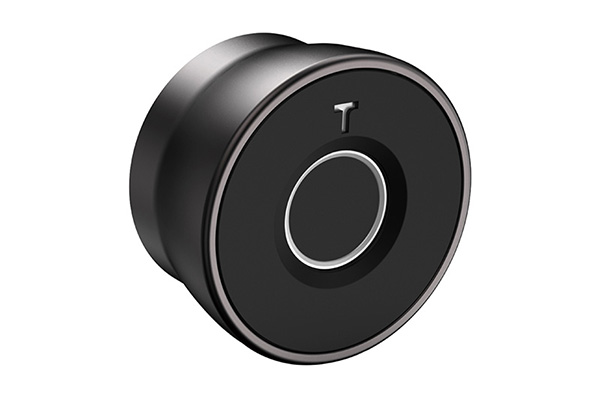

S034

Elegant Built-in Design

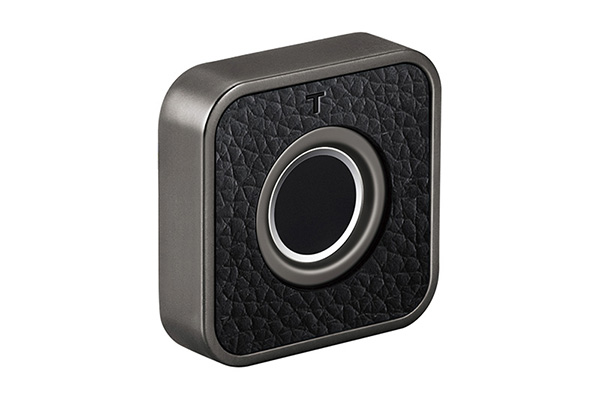

S036

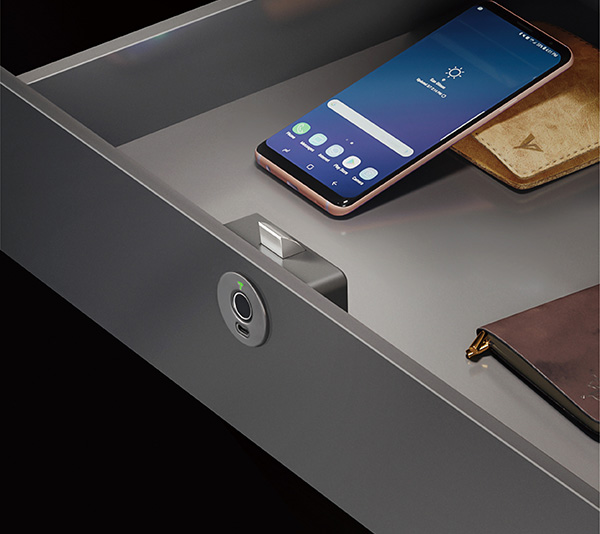

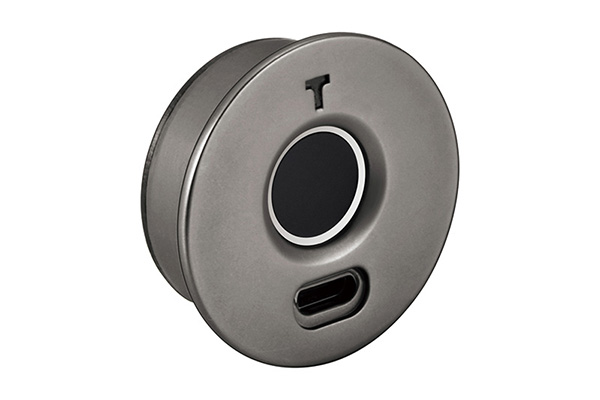

S053

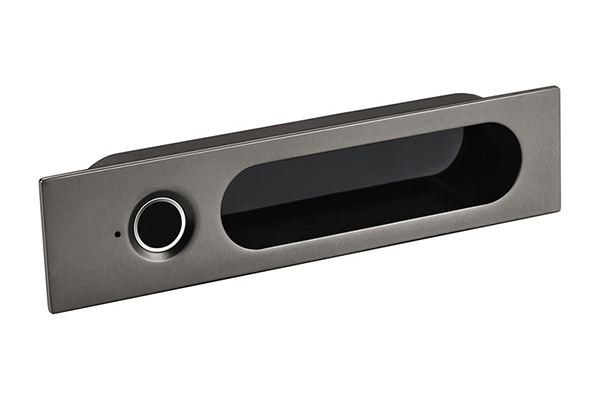

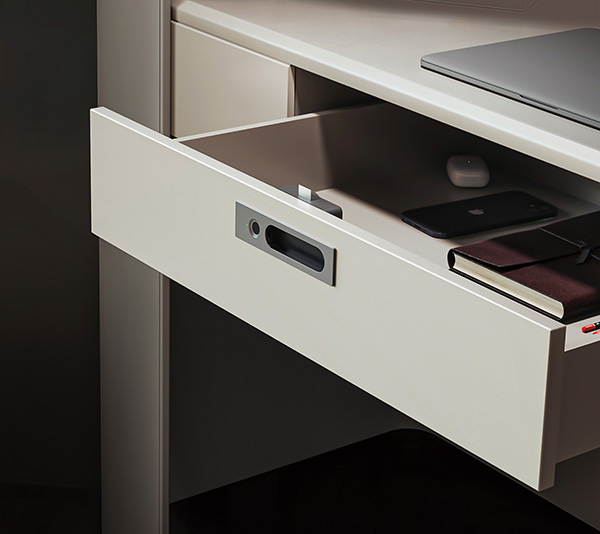

S037

Leather Color

C-018

C-023

C-026

C-027

C-029

C-031

Technical Comparison

Series		F0	T0	D0
Lock Body	Image
	Driven	Motor	Solenoid	Motor
	Latch Working	Automatic	Manual	Automatic
	Material	Steel	Steel + Plastic	Plastic
	Size	70 x 43 x 18 2.76" x 1.69" x 0.79"	68 x 42 x 20 2.68" x 1.65" x 0.79"	54 x 108 x 19.1 2.13" x 4.25" x 0.75"
Unlock Way	Fingerprints	Semiconductor Scanner
	Fingerprints	Max 20	-	Max 50
	Password	1	1	Max 250
	RFID Card	-	-	NFC / Mifare
	RFID Card	-	-	Max 250
	Mobile APP	-	-	Bluetooth Tuya (Smartlife)
Working System	Power Supply	Built-in Lithium		3xAAA alkaline Battery
	Power Supply	250mAh, 0.925Wh		3xAAA alkaline Battery
	Working Voltage	3.5V～4.2V		3.7V～4.5V
	Working Current	≤26mA		＜50mA
	Static Current	≤30μA		＜80μA
Backup Power	Connecting Wire	Type charging wire
	Charging	Fully charging in 30-40 mins		-
	Emergency	-		Power bank
Application	Drawers, Cabinets, Wardrobes and More

Lock Console Specifications

Model		S032	S033	S035	S034	S036	S053	S037
Size		118 x 21 x 9 4.65" x 0.83" x 0.35"	75 x 32 x 14 2.95" x 1.26" x 0.55"	75 x 38 x 11 2.95" x 1.50" x 0.43"	Φ33 x 18 Φ1.30" x 0.71"	32 x 32 x 20 1.26" x 1.26" x 0.79"	Φ35 x 12 Φ1.38" x 0.47"	134 x 32 x 16 5.28" x 1.26" x 0.63"
Frame	Material	Zinc-alloy
	Finish	Plating
	Color	Hematite					Gold	Hematite
Ornament		Microfiber Leather			PVC	Microfiber Leather	-	Microfiber Leather
Installation		Surface mounted				Embedded mounted

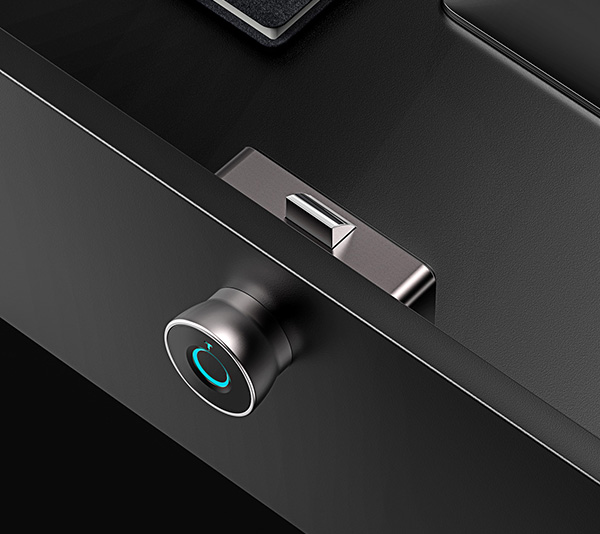

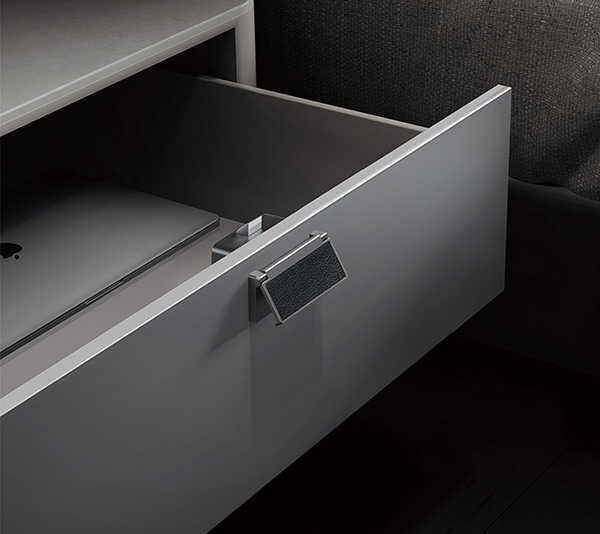

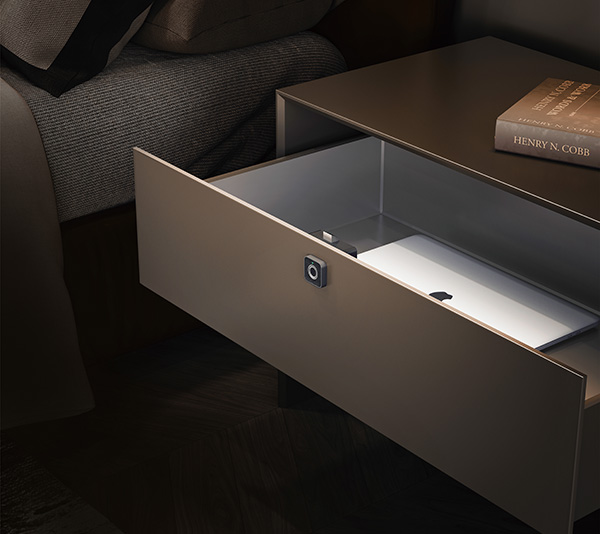

Installation

Inspire Me

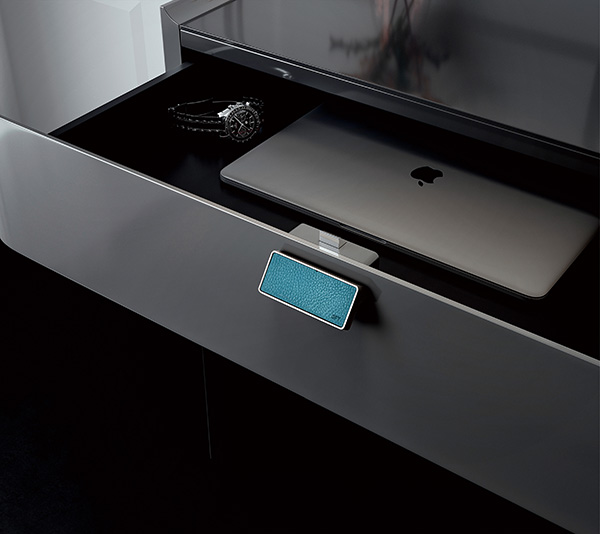

Bedroom Closet Solution

Classic walk-in Wardrobe

Modern Design Study Room

Video
